LSC 1887118 : Genuine Crankshaft Gear – NEW

£47.15

In stock

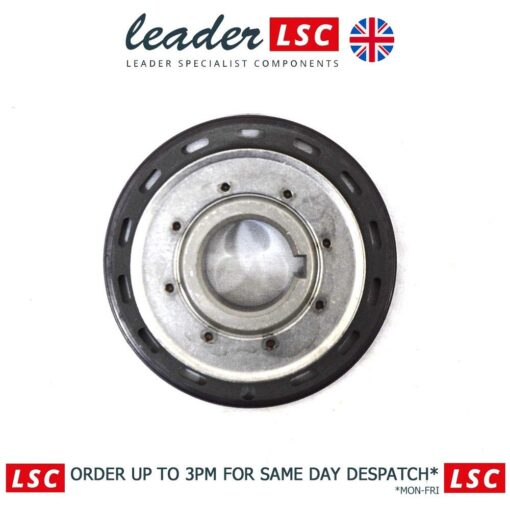

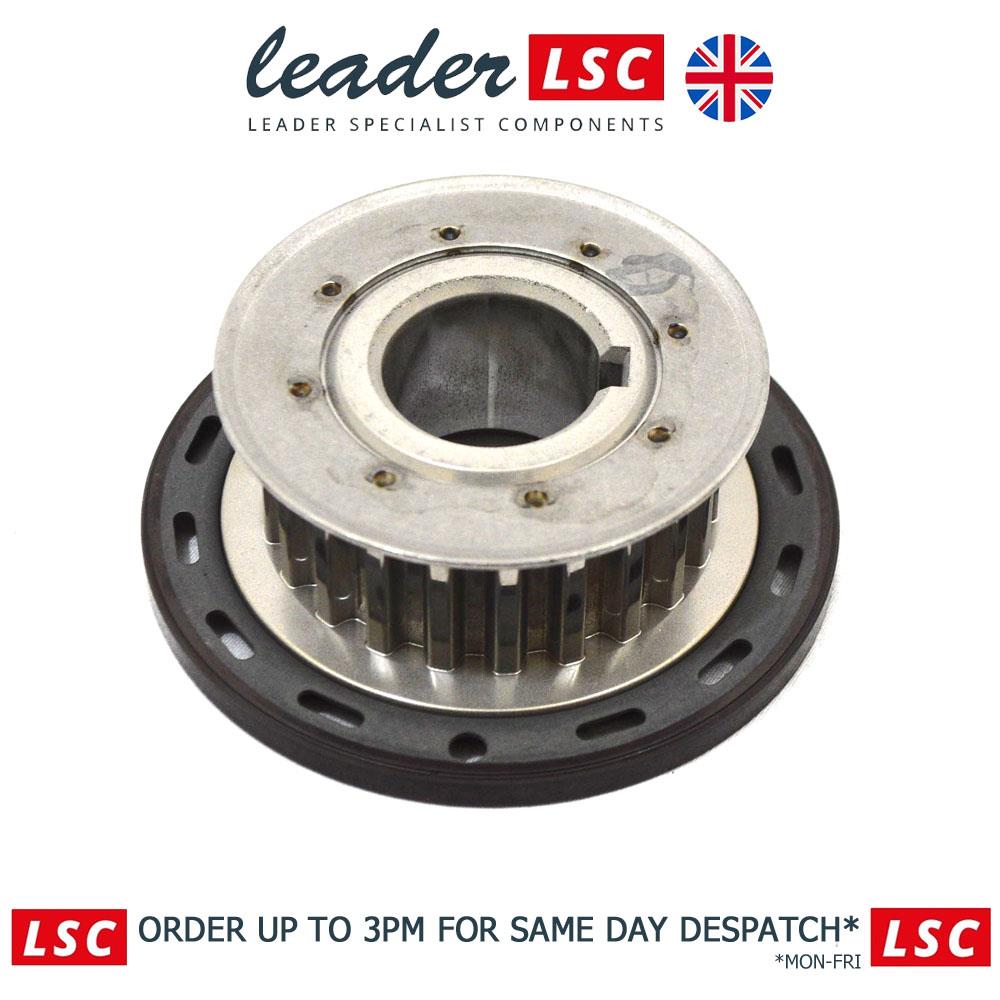

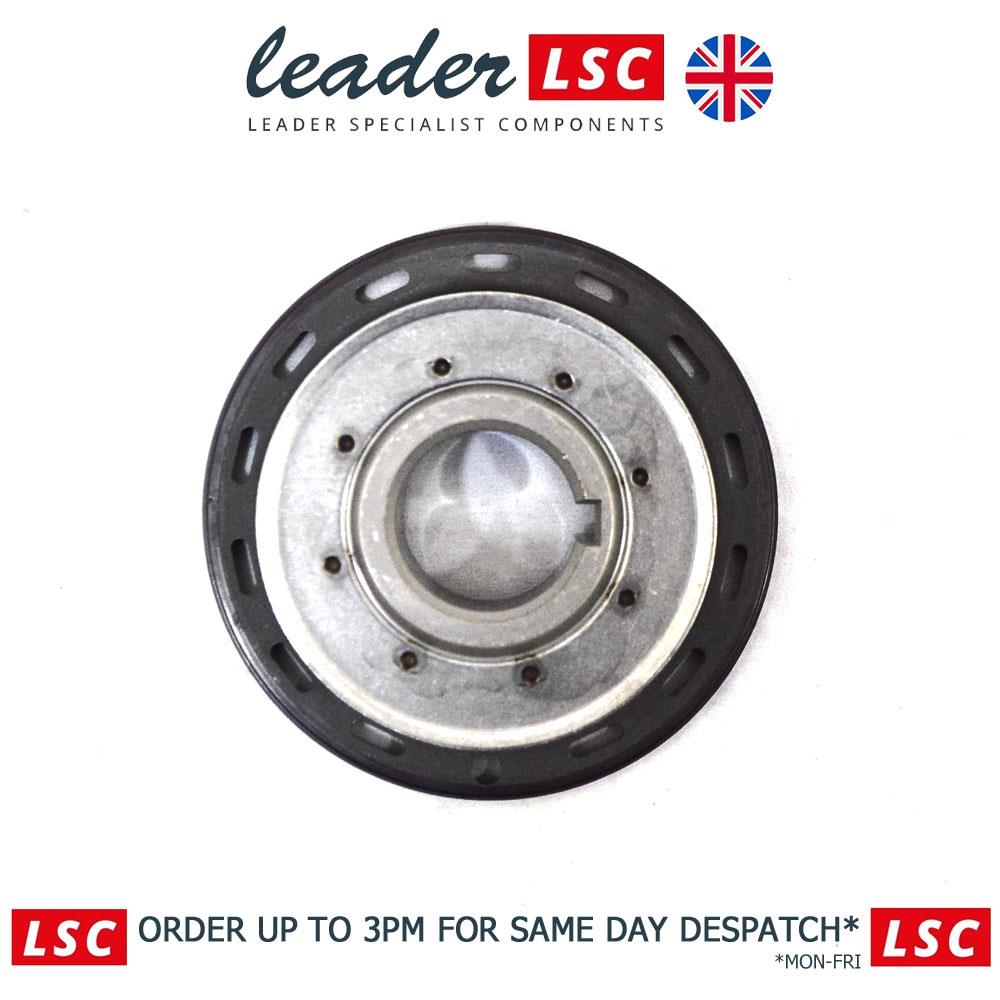

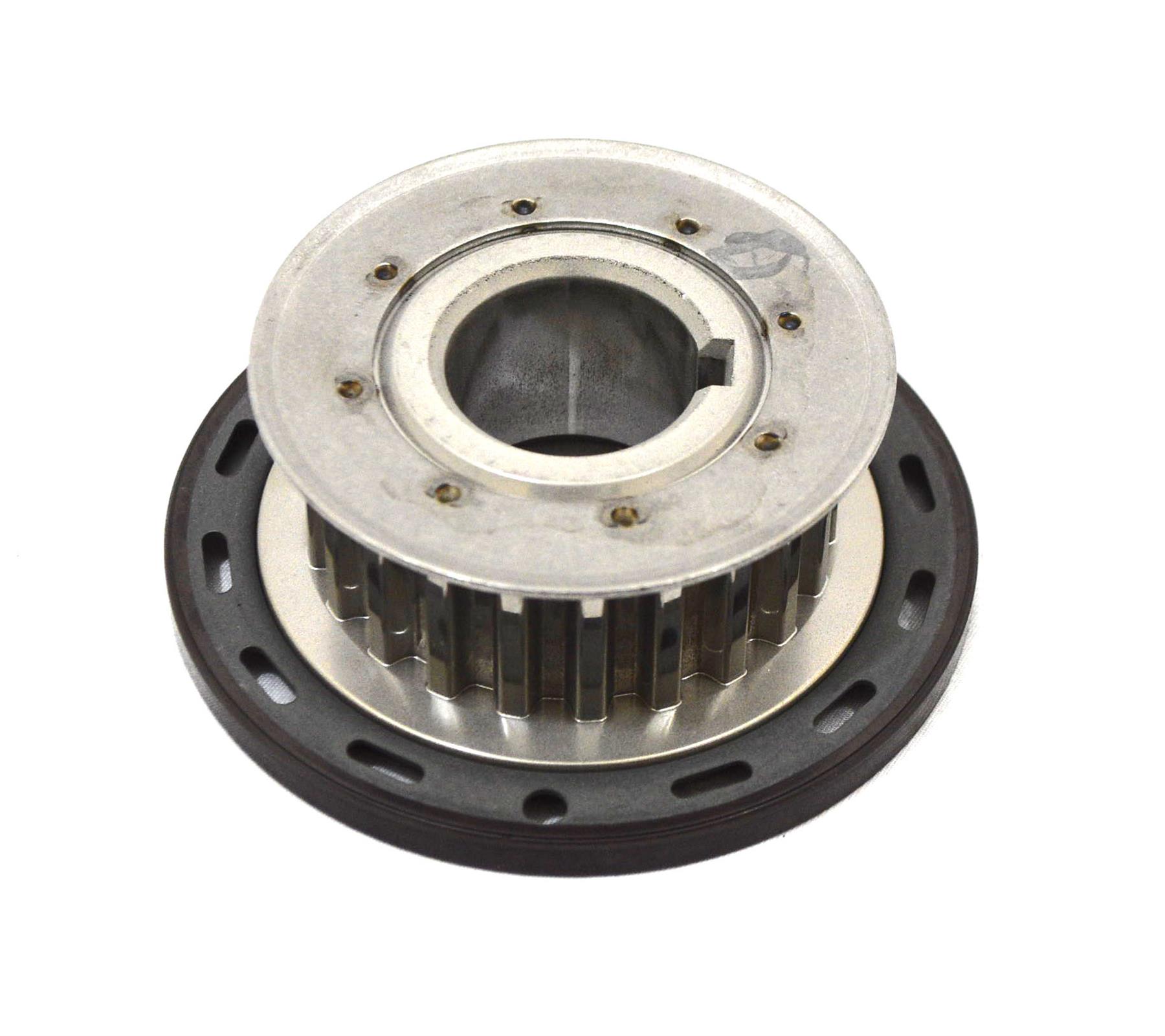

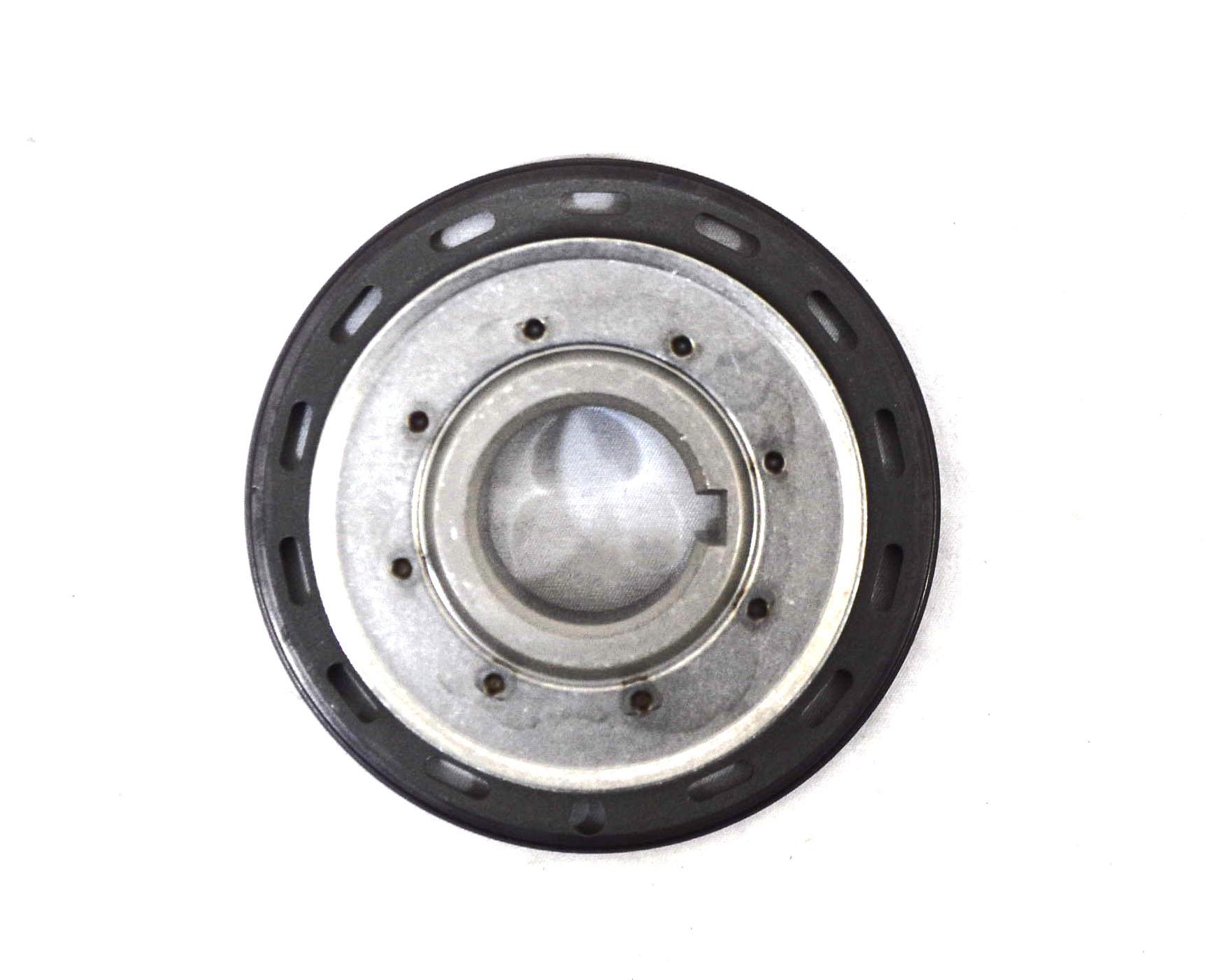

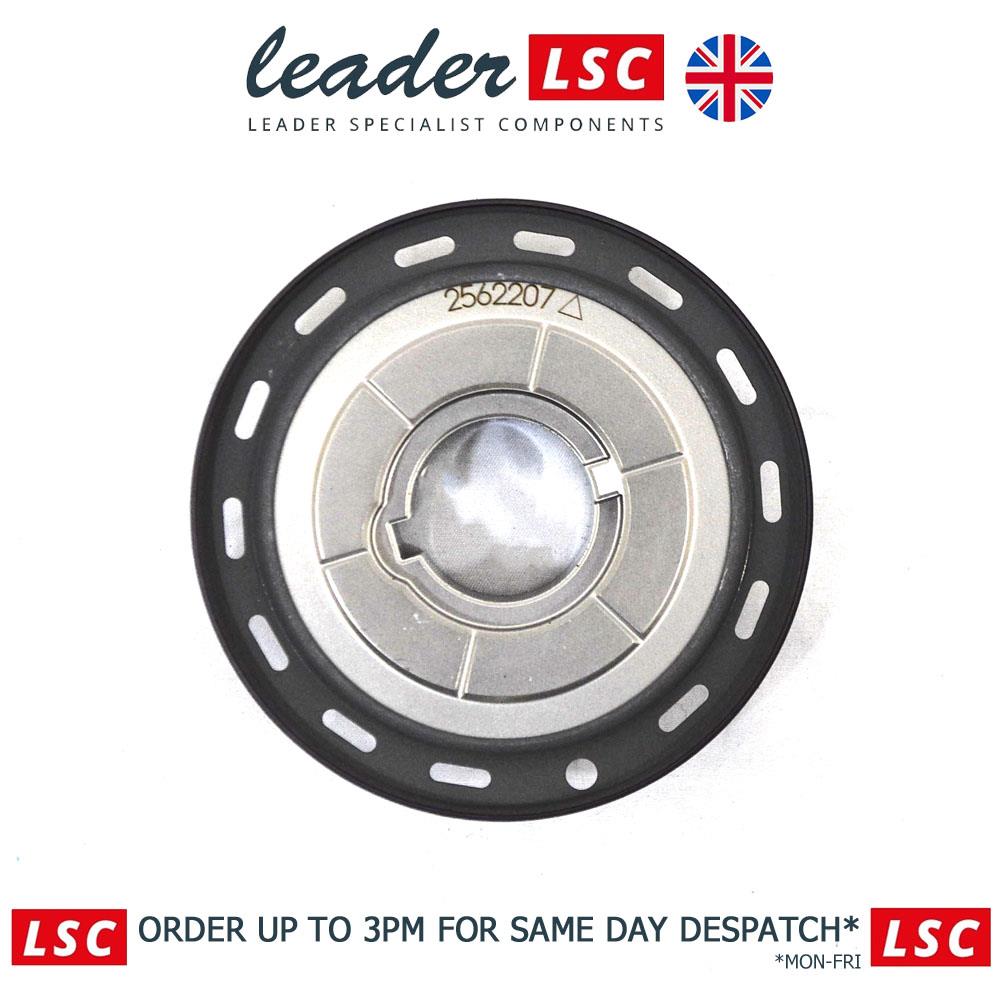

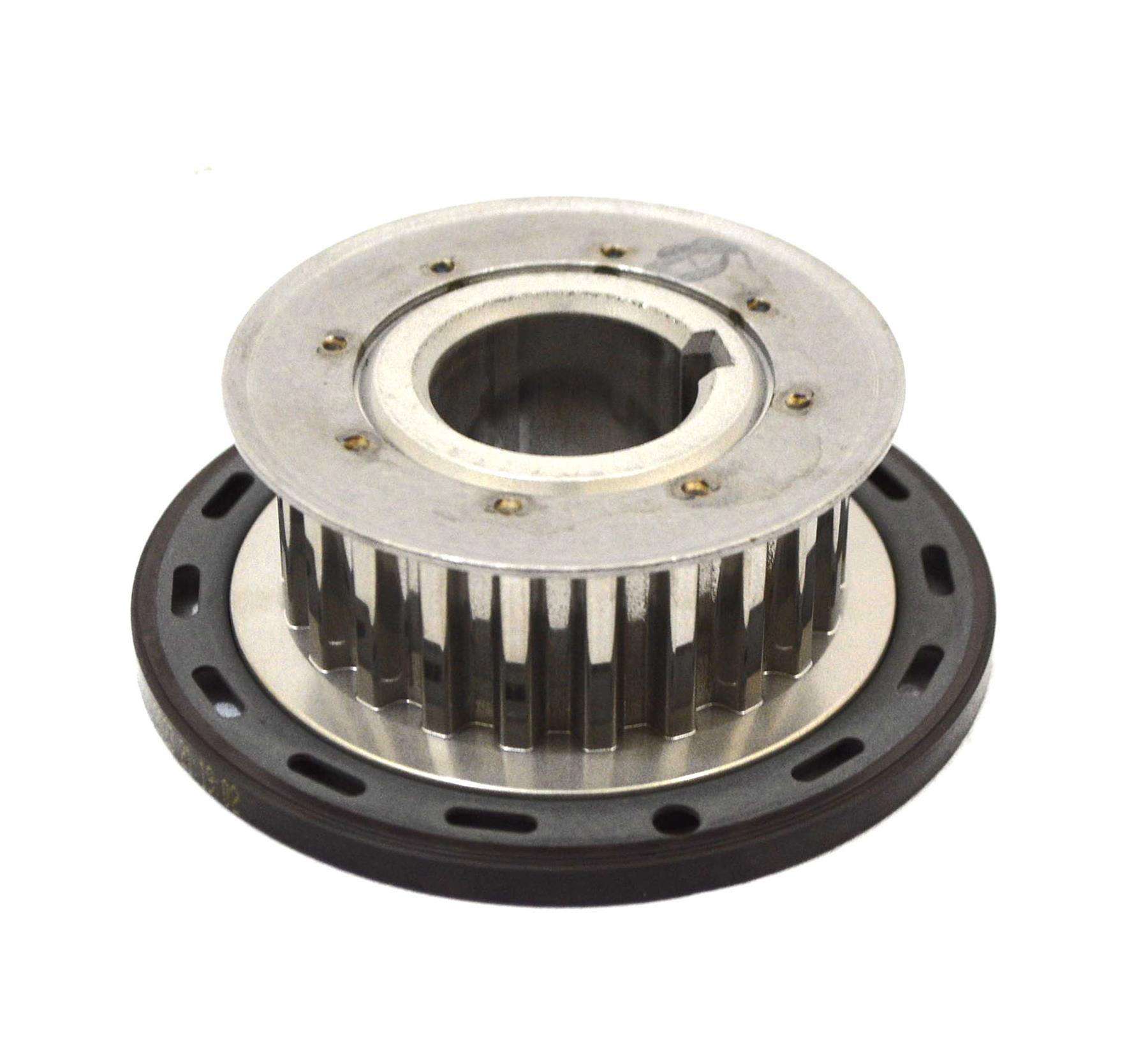

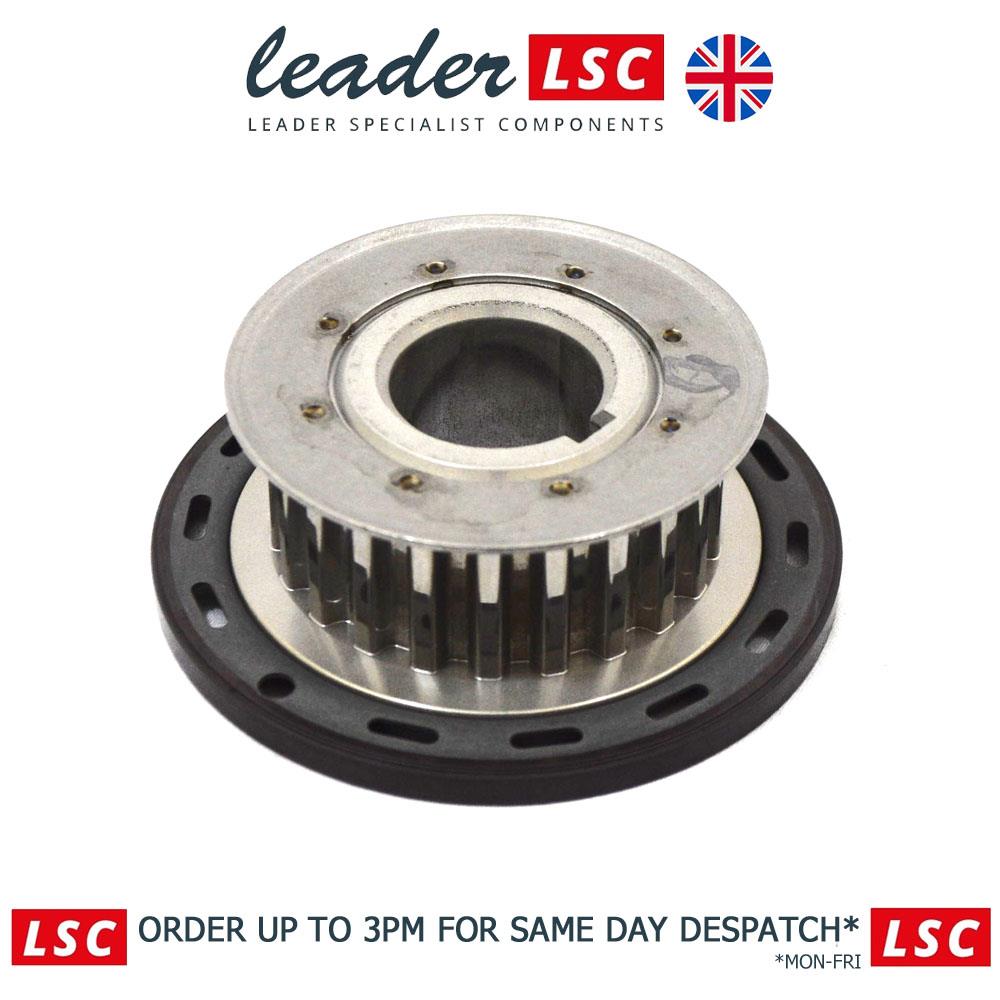

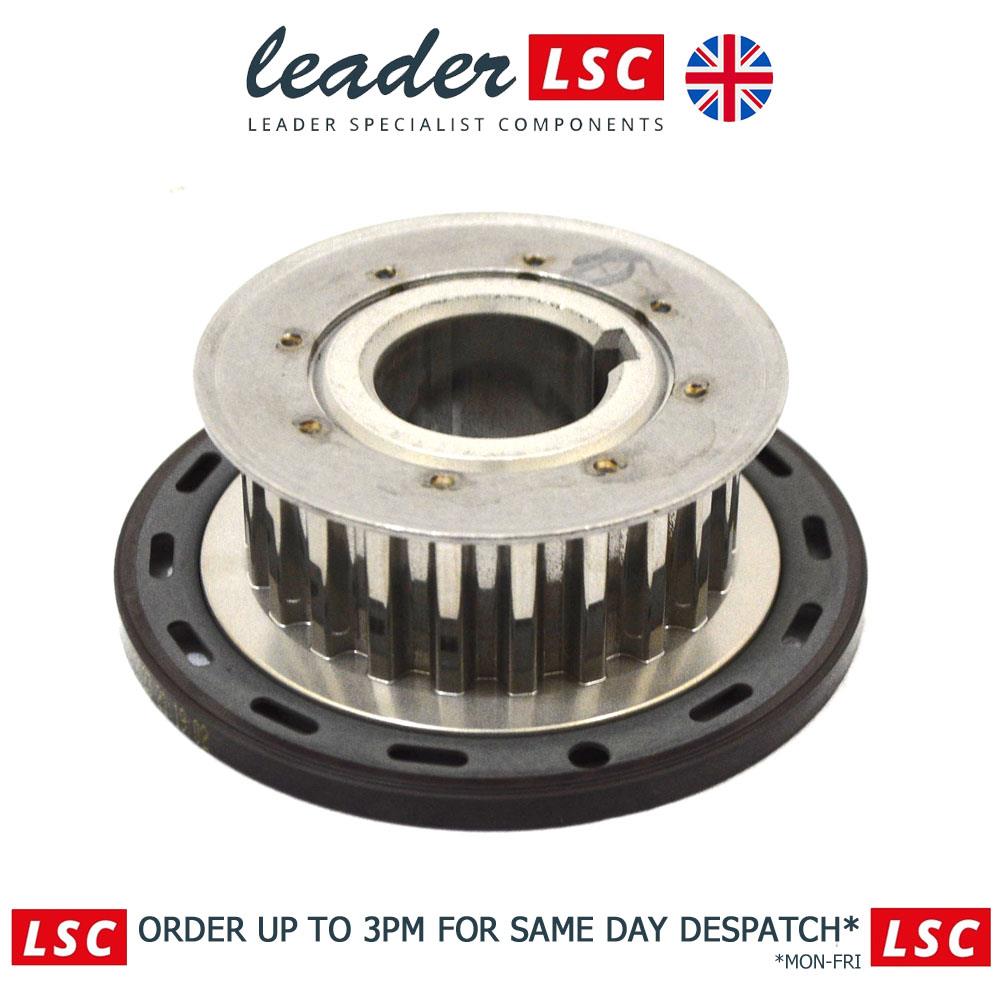

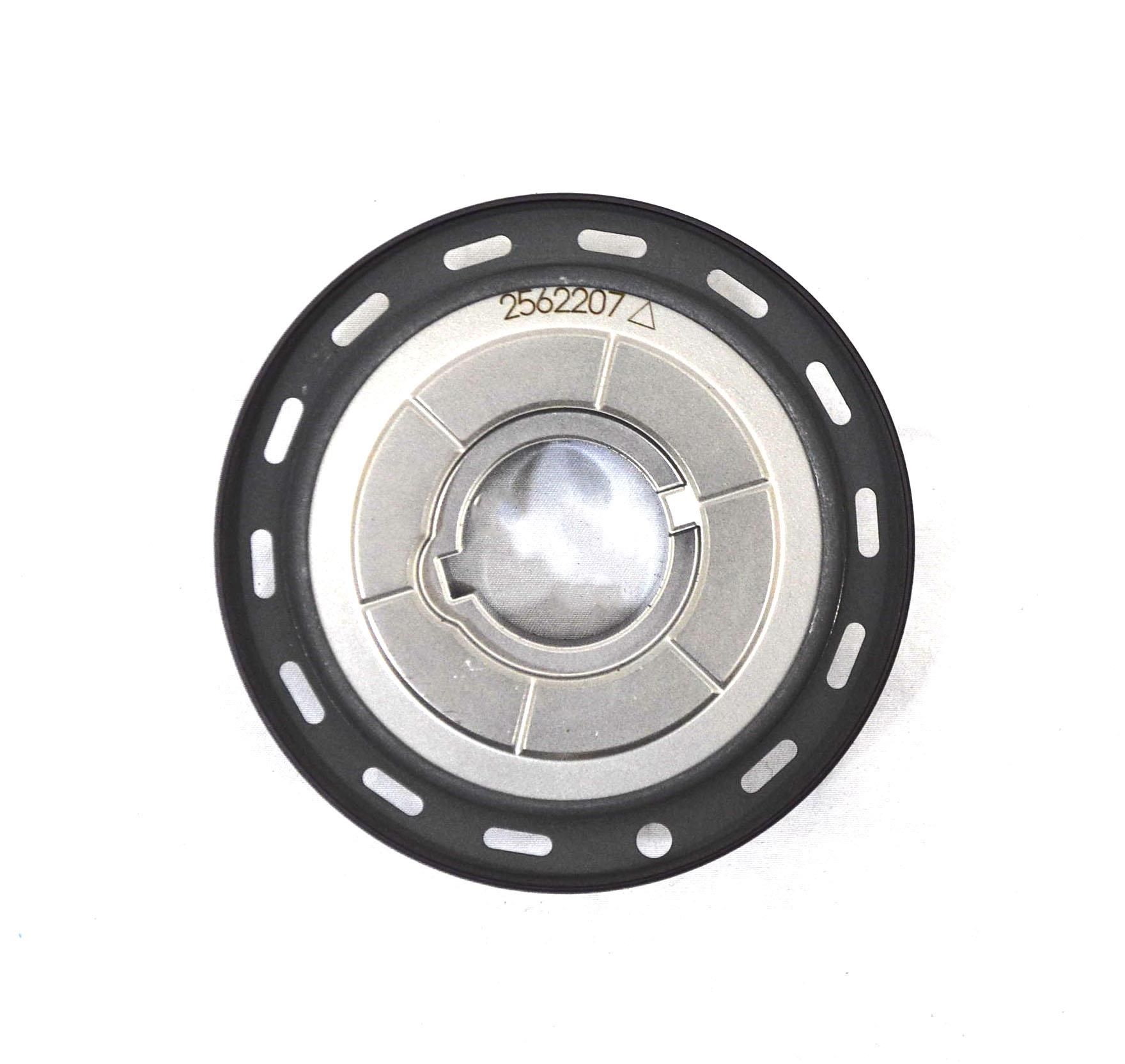

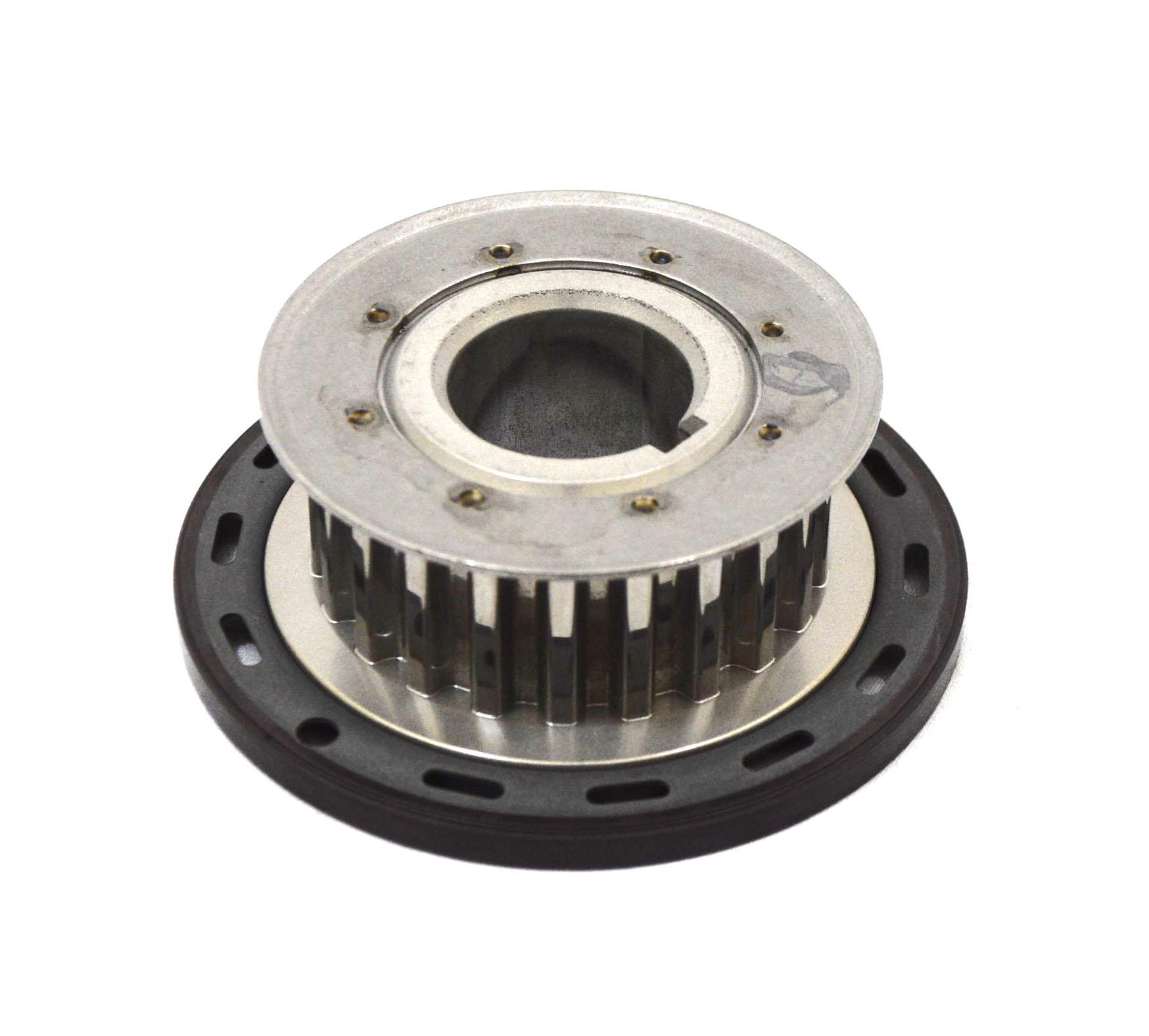

Crankshaft Gear

Inner Diameter: 29.9mm
Lower Outer Diameter: 100.4mm
Upper Outer Diameter: 65.32mm
Brand New Part * Genuine / Original Ford (OEM) *

This will fit the following vehicles:-
Citroen
Berlingo inc Multispace (2005->)
1.6 HDi – Engine Codes: 9HF (DV6DTED), 9HL (DV6C), 9HJ (DV6DTEDM), 9HP (DV6DTED),
9HX (DV6ATED4), 9HZ (DV6TED4), DV6AUTED4, DV6B, DV6C, DV6ETED
C1 (2005-14)
1.4 HDi – Engine Code: DV4TD
C2 (2003-09)
1.4 HDi – Engine Code: DV4TD
1.6 HDi – Engine Code: 9HZ (DV6TED4)
C3 Mk1 (2002-08)
1.4 HDi – Engine Codes: 8HX (DV4TD), 8HY (DV4TED4), 8HZ (DV4TD)
1.6 HDi – Engine Codes: 9HX (DV6ATED4), 9HZ (DV6TED4)
C3 Mk2 (2009->)
1.4 HDi – Engine Codes: 8HP (DV4C), 8HR (DV4C), 8HZ (DV4TD)
1.6 HDi – Engine Codes: 9HJ (DV6DTEDM), 9HP (DV6DTED), 9HR (DV6C)
C3 Picasso (2009->)
1.6 HDi – Engine Codes: 9HP (DV6DTED), 9HR (DV6C), 9HX (DV6ATED4), 9HZ (DV6TED4)
C4 Mk1 (2004-11)
1.6 HDi – Engine Codes: 9HV (DV6TED4B), 9HX (DV6ATED4), 9HY / 9HZ (DV6TED4)
C4 Mk2 (2009->)
1.6 HDi – Engine Codes: 9HD / 9HR (DV6C), 9HJ (DV6DTEDM)
C4 Picasso Mk1 (2007-13)
1.6 HDi – Engine Codes: 9HR (DV6C), 9HY / 9HZ (DV6TED4)
C4 Grand Picasso (2006-13)
1.6 HDi – Engine Codes: 9HR (DV6C), 9HY /, 9HZ (DV6TED4)
C5 Mk2 (2004-08)
1.6 HDi – Engine Codes: 9HY / 9HZ (DV6TED4)
C5 Mk3 (2008->)
1.6 HDi – Engine Codes: 9HL / 9HR (DV6C), 9HZ (DV6TED4)
Dispatch Mk2 (2007-16)
1.6 HDi – Engine Code: 9HU (DV6UTED4)
DS3 (2009-15)
1.4 HDi – Engine Codes: 8HP / 8HR (DV4C)
1.6 HDi – Engine Codes: 9HD / 9HR (DV6C), 9HP (DV6DTED)
DS4 (2011-15)
1.6 HDi – Engine Codes: 9HD / 9HR (DV6C), 9HP (DV6DTED)
DS5 (2011-15)
1.6 HDi – Engine Codes: 9HD / 9HR (DV6C)
Nemo (2008->)
1.4 HDi – Engine Codes: 8HS (DV4TED)
Xsara (2003-05)
1.4 HDi – Engine Code: 8HX (DV4TD)
Xsara Picasso (2004-11)
1.6 HDi – Engine Codes: 9HY / 9HZ (DV6TED4), 9HX (DV6ATED4)

Fiat
Scudo (2007-16)
1.6 D Multijet – Engine Code: 9HU

Ford
B-Max (2012->)
1.5 TDCi – Engine Codes: UGJC, UGJG, XUJA, XUJB
1.6 TDCi – Engine Code: T3JB
C-Max Mk1 (2007-10)
1.6 TDCi – Engine Codes: G8DA, G8DB, G8DC, G8DD, GPDA, HHDA, HHDB, MTDA
C-Max Mk2 (2010-19)
1.6 TDCi – Engine Codes: T1DA, T1DB, T3DA, T3DB
EcoSport (2013->)
1.4 TDCi – Engine Code: UGJE
Fiesta Mk5 (2001-12)
1.4 TDCi – Engine Codes: F6JA, F6JB
1.6 TDCi – Engine Codes: HHJA, HHJB
Fiesta Mk6 (2011-17)
1.4 TDCi – Engine Codes: F6JB, F6JD, KVJA
1.5 TDCi – Engine Codes: UGJC, XUJA, XUJB
1.6 TDCi – Engine Codes: T3JA, TZJA, TZJB
Focus C-Max (2003-07)
1.6 TDCi – Engine Codes: G8DA, G8DB, G8DD, G8DE, G8DF, HHDA, HHDB
Focus Mk2 (2004-12)
1.6 TDCi – Engine Codes: G8DA, G8DB, G8DC, G8DD, G8DE, G8DF, HHDA, HHDB, MTDA
1.6 Ti – Engine Codes: HXDA, HXDB, SIDA
Focus Mk3 (2012->)
1.6 TDCi – Engine Codes: NGDA, NGDB, T1DA, T1DB, T3DA, T3DB
Fusion (2002-12)
1.4 TDCi – Engine Codes: F6JA, F6JB
1.6 TDCi – Engine Codes: HHJA, HHJB
Galaxy Mk2 (2011-15)
1.6 TDCi – Engine Codes: T1WA, T1WB
Grand C-Max (2010-19)
1.6 TDCi – Engine Codes: T1DA, T1DB, T3DA, T3DB
Mondeo Mk4 (2010-15)
1.6 TDCi – Engine Codes: T1BA, T1BB, T1BC

Mini
MINI R56 (2006-10)
Cooper D & One D – Engine Code: 9HZ (DV6TED)
MINI CLUBMAN R55 (2007-10)
Cooper D – Engine Code: 9HZ (DV6TED4)

Peugeot
1007 (2005->)
1.4 HDi – Engine Codes: 8HX / 8HZ (DV4TD)
1.6 HDi – Engine Code: 9HZ (DV6TED4)
107 (2005-14)
1.4 HDi – Engine Code: 8HT (DV4TD)
206 (2001-09)
1.4 HDi – Engine Codes: 8HX / 8HZ (DV4TD)
1.6 HDi – Engine Codes: 9HY / 9HZ (DV6TED4)
206 CC (2005-07)
1.6 HDi – Engine Code: 9HZ (DV6TED4)
206 SW (2002-07)
1.4 HDi – Engine Code: 8HX (DV4TD)
1.6 HDi – Engine Code: 9HZ (DV6TED4)
207 (2006-15)
1.4 HDi – Engine Codes: 8HR (DV4C), 8HZ (DV4TD)
1.6 HDi – Engine Codes: 9HP (DV6DTED), 9HR (DV6C), 9HY / 9HZ (DV6TED4)
207 CC (2007-15)
1.6 HDi – Engine Codes: 9HR (DV6C), 9HZ (DV6TED4)
207 SW (2007-13)
1.6 HDi – Engine Codes: 9HP (DV6DTED), 9HR (DV6C), 9HZ (DV6TED4)
3008 (2009-16)
1.6 HDi – Engine Codes: 9HD (DV6CTED), 9HR (DV6C), 9HZ (DV6TED4)
307 (2001-09)
1.4 HDi – Engine Codes: 8HX / 8HZ (DV4TD)
1.6 HDi – Engine Codes: 9HV (DV6TED4B / DV6TED4BU), 9HX (DV6ATED4), 9HY / 9HZ (DV6TED4)
307 SW (2003-07)
1.6 HDi – Engine Codes: 9HY / 9HZ (DV6TED4)
308 CC (2009-14)
1.6 HDi – Engine Code: 9HR (DV6C)
308 Mk1 (2007-14)
1.6 HDi – Engine Codes: 9HJ (DV6DTEDM), 9HP (DV6DTED), 9HR (DV6C),
9HV (DV6TED4B / DV6TED4BU), 9HX (DV6ATED4), 9HY / 9HZ (DV6TED4)
308 SW Mk1 (2007-14)
1.6 HDi – Engine Codes: 9HP (DV6DTED), 9HR (DV6C), 9HX (DV6ATED4), 9HY / 9HZ (DV6TED4)
407 (2004-10)
1.6 HDi – Engine Codes: 9HY / 9HZ (DV6TED4)
407 SW (2004-10)
1.6 HDi – Engine Codes: 9HY / 9HZ (DV6TED4)
5008 (2010-17)
1.6 HDi – Engine Codes: 9HD / 9HR (DV6C), 9HZ (DV6TED4)
508 Mk1 (2010-18)
1.6 HDi – Engine Codes: 9HD (DV6CTED), 9HL / 9HR (DV6C)
508 SW Mk1 (2010-18)
1.6 HDi – Engine Codes: 9HL / 9HR (DV6C)
Bipper inc Tepee (2008->)
1.4 HDi – Engine Code: 8HS (DV4TED)
Expert inc Tepee (2007->)
1.6 HDi – Engine Codes: 9HH (DV6DUM), 9HM (DV6UC), 9HU (DV6UTED4)
Partner inc Tepee (2008->)
1.6 HDi – Engine Codes: 9HF / 9HP (DV6DTED), 9HJ (DV6DTEDM), 9HL (DV6C), 9HS (DV6TED4BU),
9HT (DV6BTED4 / (DV6BUTED4), 9HW (DV6BTED4), 9HX (DV6AUTED4 / DV6ATED4)

Suzuki
Liana (2004-07)
1.4 DDiS – Engine Code: 8HY

Volvo
C30 (2006-12)
1.6 D – Engine Code: D4164T
D2 – Engine Code: D4162T
S40 Mk2 (2005-12)
1.6 D – Engine Code: D4164T
D2 – Engine Code: D4162T
S60 Mk2 (2011-15)
DRIVe / D2 – Engine Code: D4162T
S80 Mk2 (2010-14)
1.6 D DRIVe – Engine Code: D4164T
1.6 DRIVe – Engine Code: D4162T
V50 (2005-12)
1.6 D – Engine Code: D4164T
D2 – Engine Code: D4162T
V60 Mk1 (2011-15)
1.6 DRIVe – Engine Code: D4162T
V70 Mk3 (2009-15)
1.6 D – Engine Code: D4164T
1.6 DRIVe / D2 – Engine Code: D4162T

Please check compatibility chart for BHP & vehicle matches
